CC Series Compactors from Connect Work Tools

Compactors

Connect Work Tools CC Series mounted compactors are designed for heavy-duty applications. The compactors are built to deliver maximum vibratory force for use in compacting or driving wood fence posts, guardrail posts, rail and I-beams, piling and seawalls, and compacting waste.

CC Series Compactors from Connect Work Tools

CC SERIES COMPACTORS

ModelModel Working Weight (lbs)Carrier Weight (lbs)Compaction Plate Size (in)Impact Force (lbs)Impact Frequency (cpm)Oil Flow
(lpm/gpm)
CC300V5502,000 – 10,00017 x 263,5002,00072.9-100 lpm
20-26 gpm
CC700V8508,000 – 20,00023 x 246,5002,00072.9-100 lpm
20-26 gpm
CC1500V1,67512,000 – 34,00028 x 3811,0002,000117.1-220 lpm
31-58 gpm
CC2000V2,13516,000 – 60,00032 x 4215,5002,000117.1-220 lpm
31-58 gpm
CC3000V2,93055,000 – 120,00036 x 5020,0002,000117.1-220 lpm
31-58 gpm
CC Series Compactors from Connect Work Tools
  • Offering five (5) models to fit skid loaders, backhoes and excavators which reduce manpower requirements and provide work safety compared to hand-held tamper operation
  • The CC Series compactors features include: Plug and play installation with wear resistant hoses and oil splash bearings that provide maintenance-free (no greasing) lubrication
  • Motor case drain ported and routed to the compactor valve, reducing additional hoses and routing and protecting the motor shaft seal from excessive carrier back pressure
  • Compactor Control Valve controls flow, pressure, regeneration and direction of flow
  • All CC compactors are equipped with heavy duty frames and base plates, containing industrial strength rubber isolators.  High performance hydraulic motors capable of operating at 2000 rpm
  • CC Series compactors are backed with a 2-year limited warranty against defective workmanship and defects in material

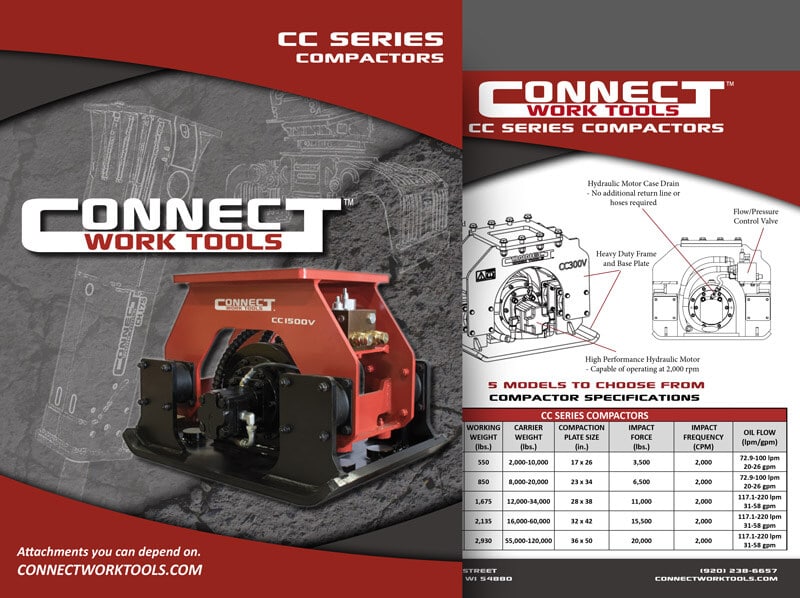

Download the full brochure

Learn about every feature and option that we have to offer
