Compactors

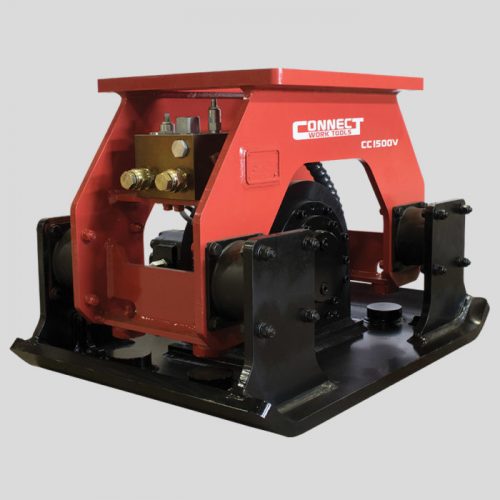

CC Series Mounted Compactors deliver powerful vibratory compaction for trench work, utility applications, foundations and site preparation. Designed for excavators, skid steers and backhoes, CC Series compactor attachments provide reliable performance, reduced maintenance and consistent compaction results.

Request a quote to find the right compactor for your machine.

CC Compactors Highlights:

Excavator Compactor Attachments
Powerful Vibratory Compaction
Utility, Trench and Foundation Work
Maintenance-Free Design

Contact Connect Work Tools today for pricing, specifications and dealer availability.

Download the full brochure

Learn about every feature and options that we have to offer

Attachment Finder

CC Series Compactors

Model	Model Working Weight (lbs)	Carrier Weight (lbs)	Compaction Plate Size (in)	Impact Force (lbs)	Impact Frequency (cpm)	Oil Flow (gpm)
CC4K	550	6,600 – 15,400	16 x 28	3,500	2,100	11
CC8K	850	11,000 – 33,000	24 x 34	7,400	2,100	21
CC14K	1,675	26,400 – 55,000	28 x 38	14,000	2,100	26
CC20K	2,135	39,600 – 55,000	32 x 46	15,500	2,100	31
CC22K	2,930	44,000 – 99,000	36 x 50	20,000	2,100	39

The CC Difference

Offering five (5) models to fit skid loaders, backhoes, and excavators which reduces manpower requirements and provides work safety compared to hand-held tamper operation
The CC Series compactor’s features include oil splash bearings that provide maintenance-free (no greasing) lubrication
Compactor Control Valve controls the flow, pressure and, regeneration
All CC compactors are equipped with heavy-duty frames and base plates, containing industrial-strength rubber isolators. High-performance hydraulic motors capable of operating at 2000 rpm
Compatible Mounting Brackets with CH Breaker Series and CG Grapple Series
Optional: Backfill blades for CC8K-22K models

Ask us about our new Connect 1 Telematics Device – revolutionary wireless telematics device that gives you detailed diagnostic data on the attachment it’s connected to.

OilQuick Americas is an authorized manufacturing partner and is available on any of our attachments.
