Magnets

CMG Series Hydraulic Magnets are designed for demolition, construction and scrap handling applications. Built for excavators, these powerful magnet attachments simplify rebar recovery, steel handling and jobsite cleanup while maximizing productivity.

Request a quote to find the right magnet for your machine.

CMG Magnets Highlights:

Fast Rebar Recovery
Efficient Steel Separation
Excavator Mounted Design
Demolition & Construction Applications

Contact Connect Work Tools today for pricing, specifications and dealer availability.

Download the full brochure

Learn about every feature and options that we have to offer

Attachment Finder

CMG Series Hydraulic Magnets

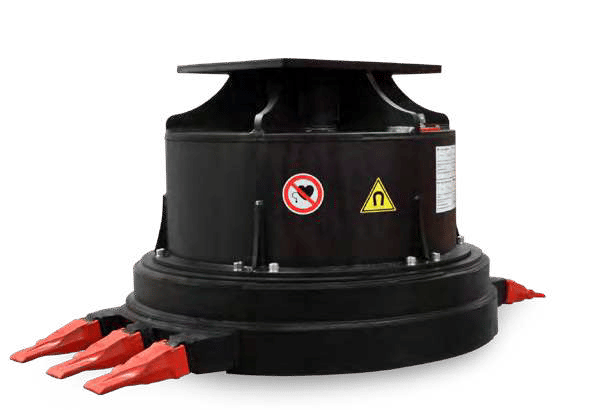

CMGID with Teeth

Models	CMG38ID	CMG421D	CMG50ID
Weight (lbs.)	2,646*	3,086*	4,189
Carrier Weight (lbs.)	28,000 – 34,000	38,000 – 46,000	52,000 – 64,000
Flow Rate (GPM)	10 – 40	10.5 – 40	12 – 40
Diameter (in.)	38	42	50
Power (kW)	4.5	5.5	7
Voltage (V)	220	220	220

CMGIC with Chains

Models	CMG42IC	CMG50IC
Weight (lbs.)	2,315	3.461
Carrier Weight (lbs.)	38,000 – 46,000	52,000 – 64,000
Flow Rate (GPM)	10.5 – 40	12 – 40
Diameter (in.)	42	50
Power (kW)	5.5	7
Voltage (V)	220	220

The CMG Difference

Offering three (3) models, 38” to 50” that are, fully hydraulic, designed to fit on excavators.
Self-contained hydraulic magnets that do not require an electrical connection or Generator and runs off the Auxiliary Hydraulic Circuit.
The CMG Series Hydraulic electromagnets with teeth are designed to rake debris, making it easier to extract ferrous materials.
Teeth are standard Esco teeth and keepers.
Equipped with a solid Bracket with pins to be used with a coupler or straight pin on.

Ask us about our new Connect 1 Telematics Device – revolutionary wireless telematics device that gives you detailed diagnostic data on the attachment it’s connected to.

OilQuick Americas is an authorized manufacturing partner and is available on any of our attachments.
