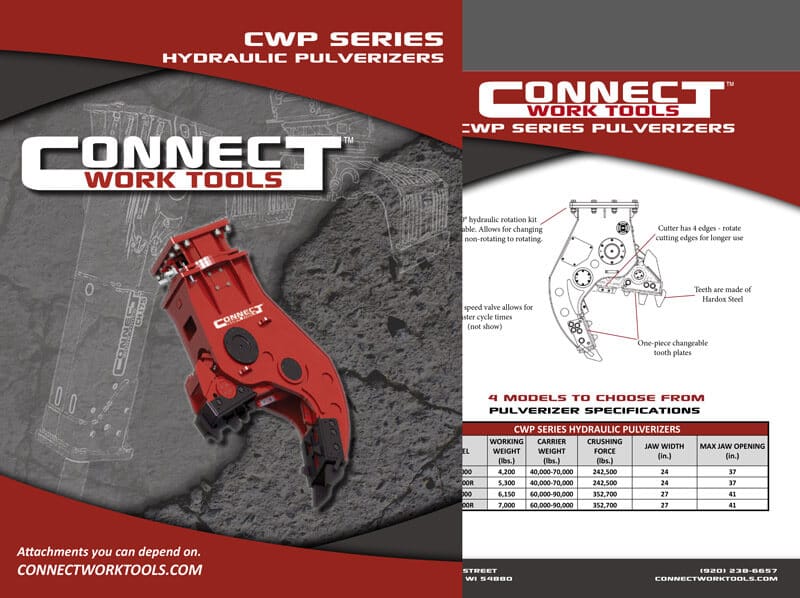

Pulverizers

Connect Work Tools CWP Series Hydraulic Pulverizers are designed for heavy-duty applications. The pulverizers have a crushing tooth plate that allows you to change out all of the crushing teeth quickly, reducing down time and the need for parent material build up and hard surfacing.  All models include a rotation kit that can change the pulverizer from non-rotating to rotating in the service shop in a few hours, eliminating the need to purchase several different units.



CWP SERIES COMPACTORS:





Model Working Weight (lbs) Carrier Weight (lbs) Crushing Force (lbs) Jaw Width (in) Max Jaw Opening (in)
CWP2000 4,200 40,000 – 70,000 242,500 24 37
CWP2000R 5,300 40,000 – 70,000 242,500 24 37
CWP3000 6,150 60,000 – 90,000 352,700 27 41
CWP3000R 7,000 60,000 – 90,000 352,700 27 41
    • Offering four (4) models
    • 360 degree hydraulic rotation kit available, allows for changing from non-rotating to rotating
    • Cutter has four edges – rotate cutting edges for longer use
    • Internal speed valve allows for faster cycle times
    • Teeth are made of Hardox Steel
    • One-piece changeable tooth plates
